From
general weighing needs, such as shipping, to precise industrial and water
washdown requirements,
theres
a ChampTM Bench Scale thats just right for your application and
your budget.

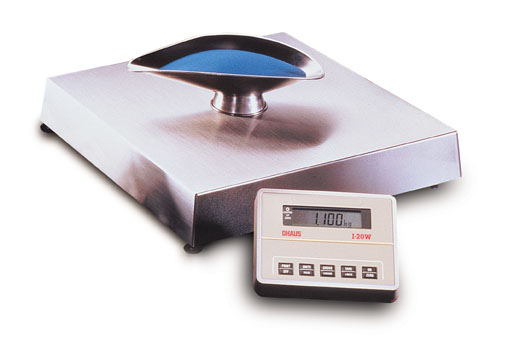

Complete
scale composed of the Ohaus I20W indicator, Ohaus scale base and 9 ft of load
cell cable.
Base
has all stainless steel platter and structure. Digital calibration for
zero and span. 5 Year warranty.
Powered
by AC adapter (included) or 6 "C" batteries not included.
|
CHAMP BENCH SCALES |
Washdown |
|
|
|
Capacity (lb/kg) |
25/10 |
50/25 |
100/50 |
200/100 |
300/150 |
500/250 |
|
Readability (lb)
(Non type approved) (kg) |
0.001
0.005 |
0.002
0.001 |
0.005
0.002 |
0.01
0.005 |
0.01
0.005 |
0.02
0.01 |
|
Readability* (lb)
(Type approved) (kg) |
0.005
0.002 |
0.01
0.005 |
0.02
0.01 |
0.05
0.02 |
0.1
0.05 |
0.1
0.05 |
|
Weighing modes |
lb, kg, lb:oz, over/under |
|
Repeatability (Std. Dev.) |
± 0.01% |
|
Operating temperature |
32Ί to 104ΊF / 40ΊC
(Non type approved) |
|
Power requirements |
AC adapter: 100, 120,
220, 240 V ac, 50/60 Hz |
|
Battery requirements |
6 alkaline or NiCad
rechargeable "C" batteries |
|
Typical battery charge duration |
Alkaline 100 hours /
NiCad 40 hours (w/o RS232) |
|
Scale base size (in)
W x D x H (cm) |
12 x 12 x 3.4
30 x 30 x 8.6 |
18 x 18 x 3.6
45 x 45 x 9.1 |
24 x 24 x 5.8
60 x 60 x 14.8 |
|
Platform construction |
Stainless steel |
|
Frame construction |
Stainless steel |
|
Stainless Steel Item # |
B10AS20 |
B25AS20 |
B50AS20 |
B100AS20 |
B150AS20 |
B250AS20 |
|
Painted Steel Item # |
|
|
|
|
|
|
|
Stainless Steel Item # |
|
|
|
|
|
|
* In type approved applications, readability is limited to capacity/nmax
User selectable
Specifications are given as a percent of the rated load.
| |
