Please click on the Revere Load cell
you are interested in

Revere HPS and HPSM stainless steel load cell
Single point load cell. 0.03% nonlinearity, 390 input/ 350 ohms output, 10 ft 4 conductor cable, stainless steel construction for harsh environment.	Click here for Pricing

Revere 5123 & 9123 load cell
Shear beam load cell. Interchangeable with Sensortronics Model 65023. 3mv/v, 0.03% nonlinearity, 350/350 ohm, 20 ft 4 conduit cable, nickel plated or stainless steel.	Click here for Pricing

Revere 9523 Hermetically sealed load cell
Stainless Steel Shear beam load cell. Interchangeable with Sensortronics Model 65083. 3mv/v, 0.03% nonlinearity, 350/350 ohm, 20 ft 4 conduit cable, stainless steel.	Click here for Pricing

Revere 363 & 9363 load cell
Bi-directional for both tension & compression loads 3 mv/v, 0.03% nonlinearity, 380/350, 20 ft 4 cond cable, nickel plated steel. NTEP 93-015 & 93-028 S/M 3,000 div & IIIL 10,000 div Capacity: 25, 50, 75, 100, 150, 200, 300, 750, 1K, 1.5K, 2K, 2.5K, 3K, 5K, 10K, 15K, 20K, 30K, 40K lbs	Click here for Pricing

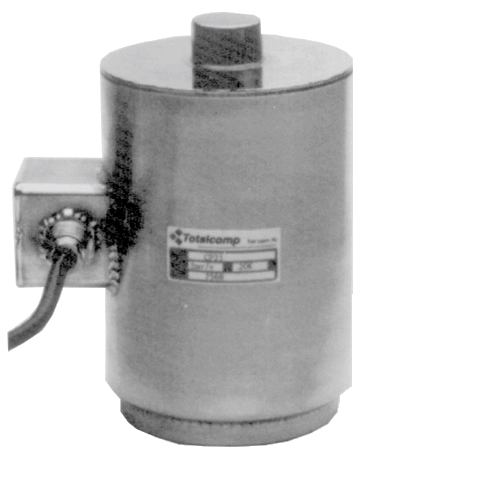

Revere CP1 & CSP1 load cell

Industrial quality heavy duty construction, load cells will perform well under extreme enviromental conditions. These are top of the line with welded, hermetically sealed cases that contain the strain gages. They should be used as replacement cells for weighing applications that demand the highest degree of reliability such as Truck, Track, Hopper and Tank Scales. Capacities: 10,000 - 25,000 - 50,000 - 100,000 - 200,000 - 300,000 - 500,000 lbs

Click here for Pricing

Revere 792 load cell
Interchangeable with BLH Model C2P1. 2 mV/V, 0.025% combined error, 350/350 ohm, 35 ft 4 cond cable, painted steel. Factory Mutual Approved. NTEP 91-001 M IIIL 10,000 div. Capacities: 50K, 100K, 200K lbs.	Click here for Pricing

Revere 92 & 93 load cell
Interchangeable with BLH Model C2P1. 2 mV/V & C3P1 3mV/v, 0.05% nonlinearity, 350/350 ohm, 10 ft 4 cond cable, painted steel. Capacities: 5K, 10K, 20K, 25K, 50K, 100K, 150K, 200K	Click here for Pricing

Revere 5223 truck load cell
3 mV/V, 0.03% nonlinearity, 700 / 700 ohm, 40 ft 4 cond cable, hermetically sealed, nickel plated steel. Capacities: 50K, 65K, 100K, 125K, 200K	Click here for Pricing

Revere 5103 and 9103 tank load cell
3 mV/V, 860/700 ohm, Capacities: 5K, 10K, 20K, 30K, 40K, 50K, 60K, 100K, 150K, 200K, 250K. Nickel plated steel or Stainless Steel.	Click here for Pricing

Revere BSP stainless steel load cell
Both tension and compression loads, hermetically sealed.3 mv/v, 0.03% nonlinearity, 350/350 ohms, 30 ft 4 cond. cable,stainless steel. 100 lb thru 5,000 lb. are available in NTEP	Click here for Pricing

Revere SSB stainless steel load cell
Hermetically sealed. Interchangeable with HBM Model SB3. 2 mv/v, 0.03% nonlinearity, 350/350 ohm, 15 ft 4 cond cable, stainless steel. NTEP 86-041 S/M III 3,000 div.	Click here for Pricing

Revere RLC stainless steel load cell
Hermetically sealed stainless steel load cell. 2mV/V, 0.02% combined error, 1115/1025 ohms, 3 meters of cable for 250 kg thru 1t, 5 meters of cable for 10 ton.	Click here for Pricing

Revere 462 single point load cell
2mV/V, 0.03% non-linearity, 350 input/ 350 ohms output, 10 ft 4 conductor cable, nickel plated steel.	Click here for Pricing
