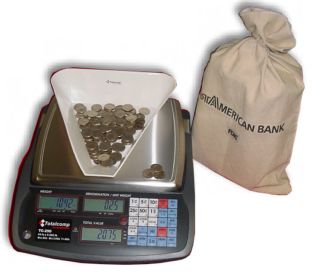

TC-290
$695 |

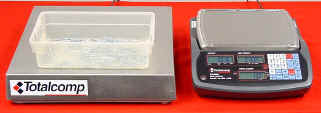

TC-292 with output for remote platform
$895 |
The TC-290 Series assures the highest quality,
reliability and accuracy with preset One-Touch Keys for each denomination.
Standard accumulation memory totalizes all denominations and prints with
optional tape or label printer. Three back lighted LCD displays with battery or
A/C operation allows use anywhere for coin, tickets, chips, tokens, to meet your
application needs at casinos, banks, mints, car washes, laundromats, toll, bus,
vending, game rooms, parking meter, cash tills, route collections and coin rooms
anywhere.
Great
accuracy with High counting resolution
and High weight display resolution
Great accuracy with High counting resolution and High weight display resolution
ACAI enhance unit weigh of denomination with on-touch Automatic
Counting Accuracy Improvement
Denomination memory of 18 items with Denomination and Unit Weight
Display Total Dollar Value, Denomination, and Total Weight of Coin, Chips,
Tickets, Tokens etc
Large capacity to weigh count standard FED ½ bag or full bag of any coin
Eight One-Touch denomination Keys and ten additional Programmable keys even
for currency
System expandability with multiple RS-232c I/O interfaces for Computer Network,
Tape or Label Printers.
Set point Signal Outputs LO/OK/HI and Light Tower option
Portable using standard sealed rechargeable battery for 60 hours
Specifications
|
General
|
|
Weighting
Resolution
|
1/30,000
selectable display divisions
|
|
Counting
Resolution
|
1/600,000
internal divisions
|
|
Accuracy
|
0.02%
weighing accuracy
|
|
Keyboard
|
Audible
& Tactile key switches
|
|
Platter
|
Heavy
duty stainless steel 10” x 12”
|
|
Power
source AC
|
AC
110/220V ±10%
|
|
Power
source Battery
|
Standard
6V 4.5 Ah Rechargeable Lead Acid battery
|
|
Power
consumption
|
6
W - battery with 60 hours
|
|
Operating
temperature
|
32°
F - 104° F
|
|
Operating
humidity
|
10%
- 80%RH
|
|
Dimensions
|
14(W)
X 15(L) X 4.9(H) inch
|
|
Net
weight
|
22 lb /10kg
|
|
Analog
section
|
|
Input
sensitivity
|
1.00-4.00mV/V
|
|
Zero
adjustment range
|
+
/ - 20%
|
|
Tare
adjustment range
|
+
/ - 100%
|
|
A/D
conversion rate
|
10
times per second
|
|
Load
cell excitation
|
5V
DC
|
|
Number
of scales
|
2
platform scales
|
|
Number
of load cells remote scale
|
4
X 350 ohm load cells
|
|
Digital section
|
|
Weight
display
|
5
digits
|
|
Unit
weight display
|
5
digits
|
|
Quantity
display
|
6
digits
|
|
Memory
items
|
18
Denominations, tickets or tokens
|
|
Calibration
|
Internal
digital keyboard calibration
|
|
OIML
Certificate of Conformity
|
No.
R76/1992-NL-02-05
|
Peripherals
|
Light
Tower Tri-Color light indicator
|
LO
/ OK / HI - yellow/green/red
|
|
OP-1
RS-232c with Set Point Relay
|
|
|
OP-2
RS-232c bi-directional
|
I/O
Computer interface
|
|
Coin
Sorting Trays
|
Five
denominations
|
|
Sample
Trays
|
